Module 1 Formstorming

Weekly Activity Template

Lennard Francis Tortola

Project 1

Module 1

Explored two materials and different ways we can interact with the circuit

Activity 1

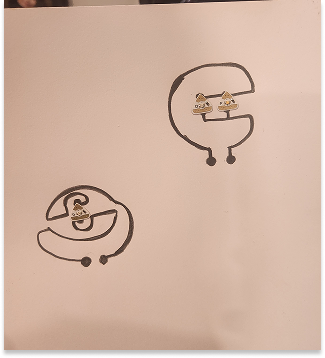

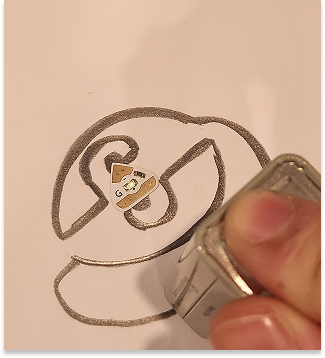

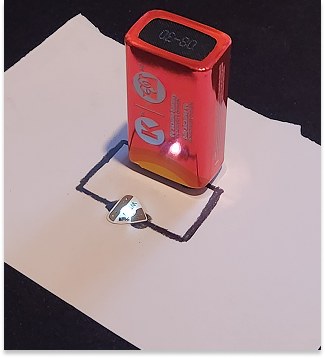

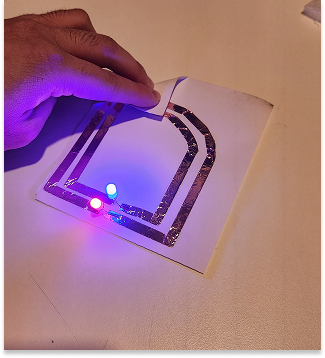

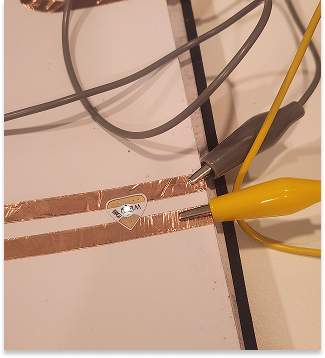

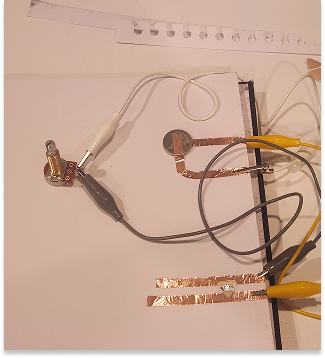

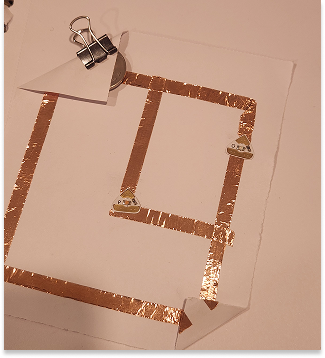

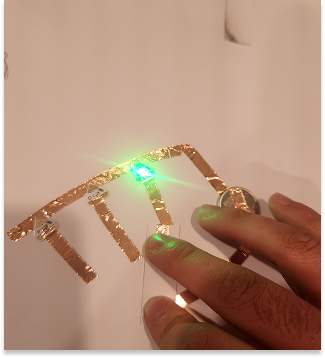

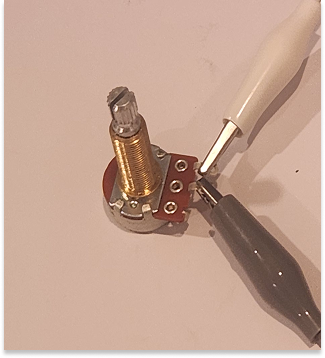

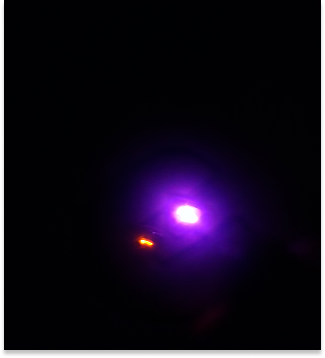

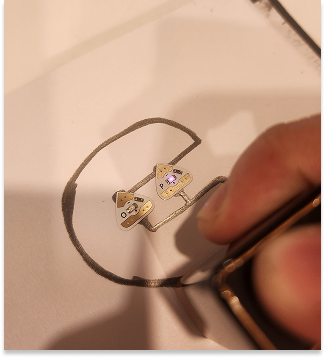

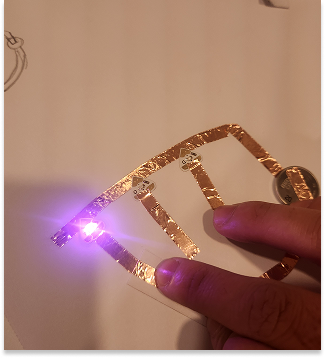

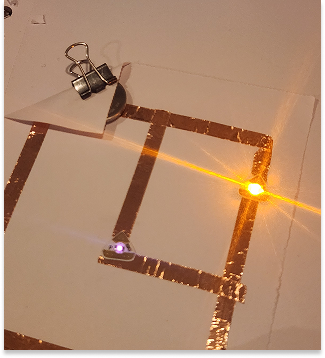

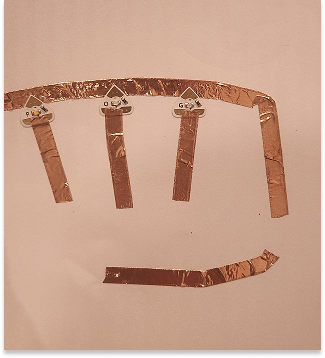

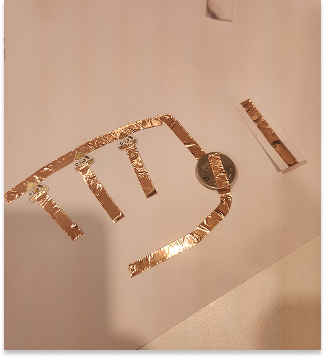

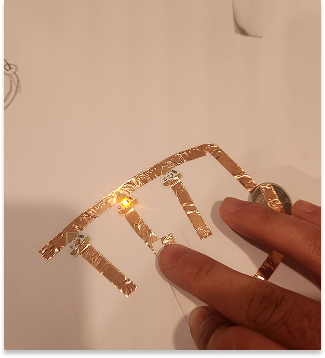

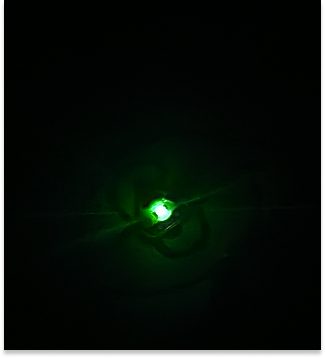

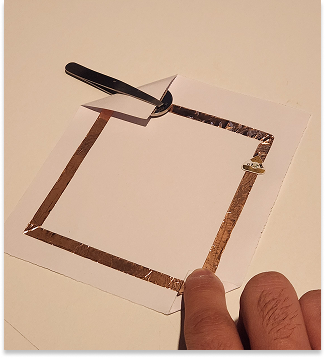

Regular circuit with switch, LED sticker was broken Circuit with switch and two LED stickers The orange LED was brighter than the pruple Two batteries,two LEDs, parallel circuit Woodless graphite pencil, 9v battery, LED Sticker Artistic graphite circuit, barley noticeable Only noticeable in the dark Artistic graphite circuit with two LED The puple LED is noticeably brighter in the dark Artistic graphite circuits 3 Way switch circuit added the battery and the switch mechanism Lighting up green<a href='https://youtube.com/shorts/zXe5eGhSXSw' target='_blank'><p>Video Link</p></a> Lighting up orange<a href='https://youtube.com/shorts/zXe5eGhSXSw' target='_blank'><p>Video Link</p></a> Lighting up purple<a href='https://youtube.com/shorts/zXe5eGhSXSw' target='_blank'><p>Video Link</p></a> Using a knob from a guitar, AKA a 'Pot' Positive side of the battery is connected to Positive side of LED, Negative side is connected to the Negative Prong in the Pot The Circuit is completed by attactching negative side of LED to the ground prong of the pot Dimmer switch for LED sticker<a href='https://youtube.com/shorts/rKQFAZ4nhCc' target='_blank'><p>Video Link</p></a> Dimmer switch for LED sticker and LED bulb<a href='https://youtube.com/shorts/qGBWXLp3DBM' target='_blank'><p>Video Link</p></a> Old Makey-Makey project from semester 2 Cube has a corcuit inside Each piece is connected to the other piece by a circuit When scrambled the circuit is open When solved the circuit is closed<a href='https://youtube.com/shorts/uAfgomMIYzc' target='_blank'><p>Video Link</p></a>

Activity 2

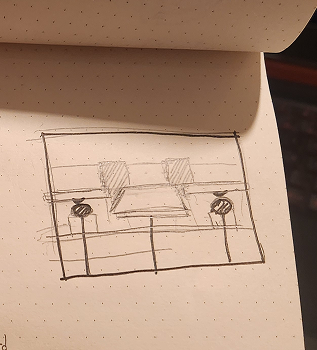

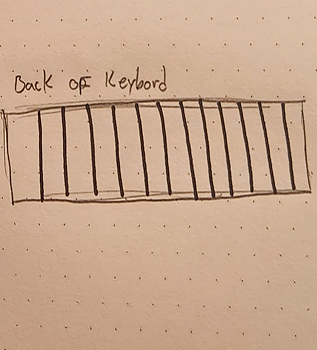

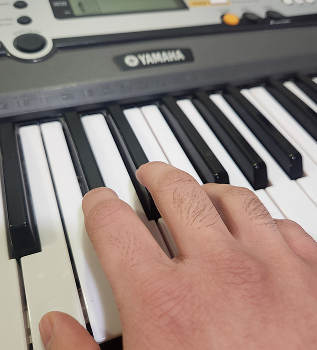

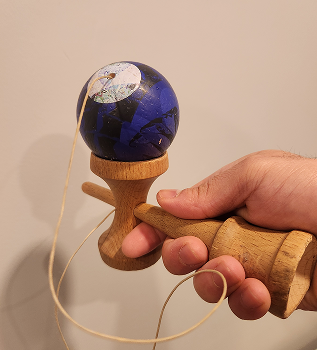

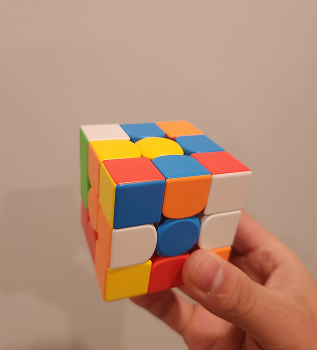

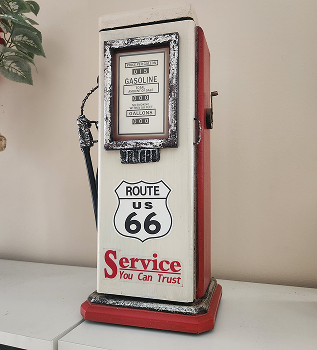

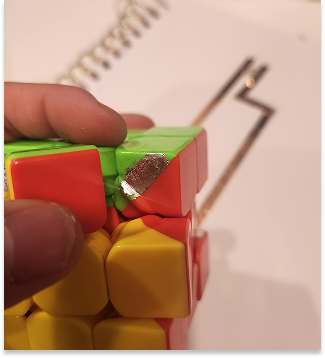

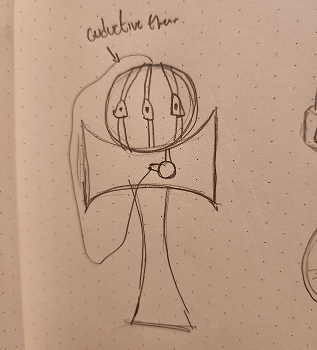

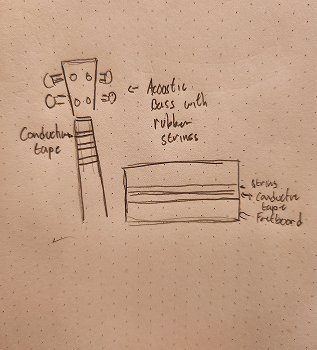

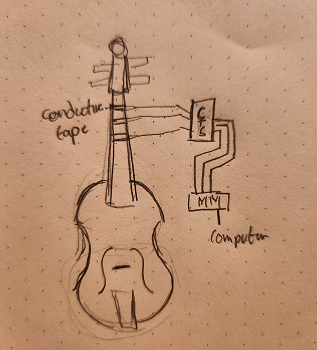

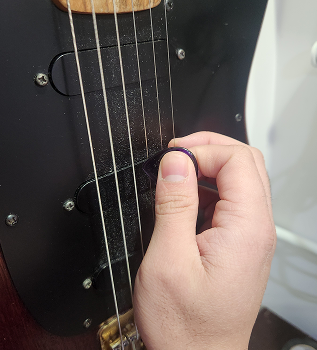

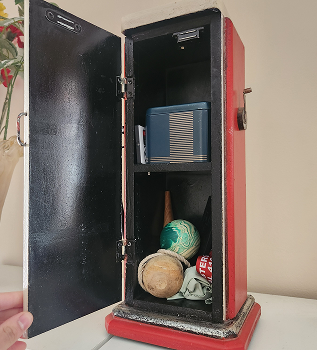

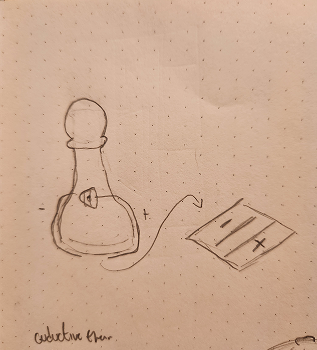

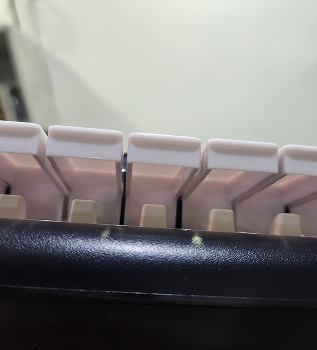

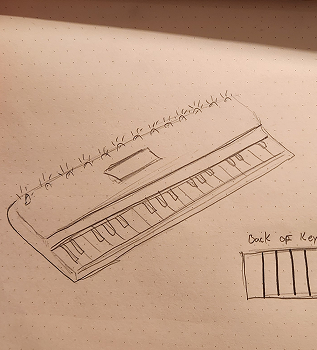

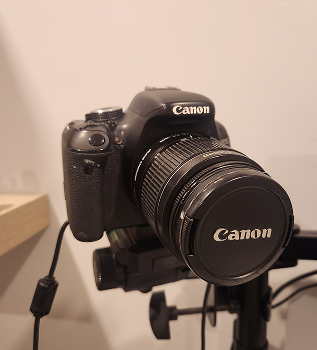

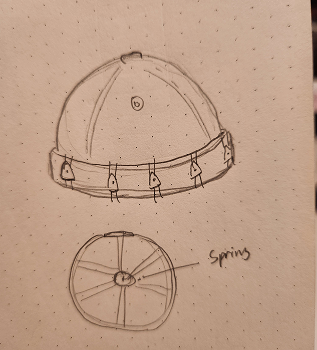

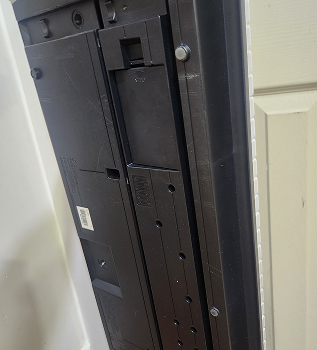

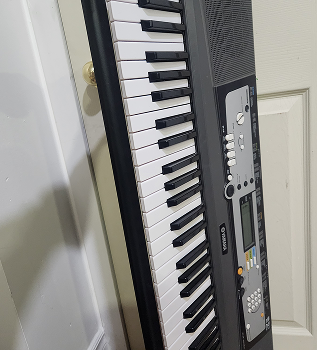

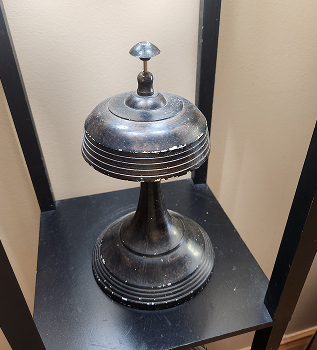

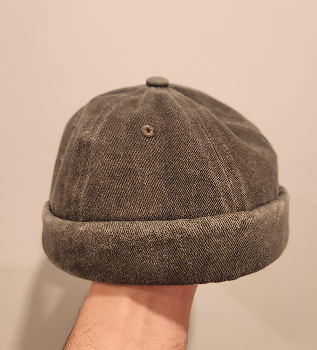

Chess piece and chess board Chess piece interacting with chess board Brimless hat Bell Bell interaction Front of keyboard Back of keyboard Interacting with keyboard Space between the keys and the board DSLR Camera Gas Station storage contianer (Opened) Gas Station storage contianer (Closed) Guitar and pick Kendama on the on the top kendama on the side Solved rubik's cube Unsolved runik's cube Chess piece circuit, the chess piece lights up when on the board Hat circuit, the hat lights up when the hat is put on Keyboard circuit, keys are pressed and it triggers a signal on the top The circuit would be between the board and the keys Wiring would come from the back Violin circuit trigger the conductive touch pad and makey makey Acoustic bass with rubber strings, conductive tape under the strings Kendama with conductive thread

Project 1

Final Project 1 Design

Non-Wearable Interactive Affordance Based Circuit with P5JS User Interface

Millie playing the violin with the app,

<a href='https://youtu.be/tNGFfp_EXEs' target='_blank'><p>Project Video Link</p></a>

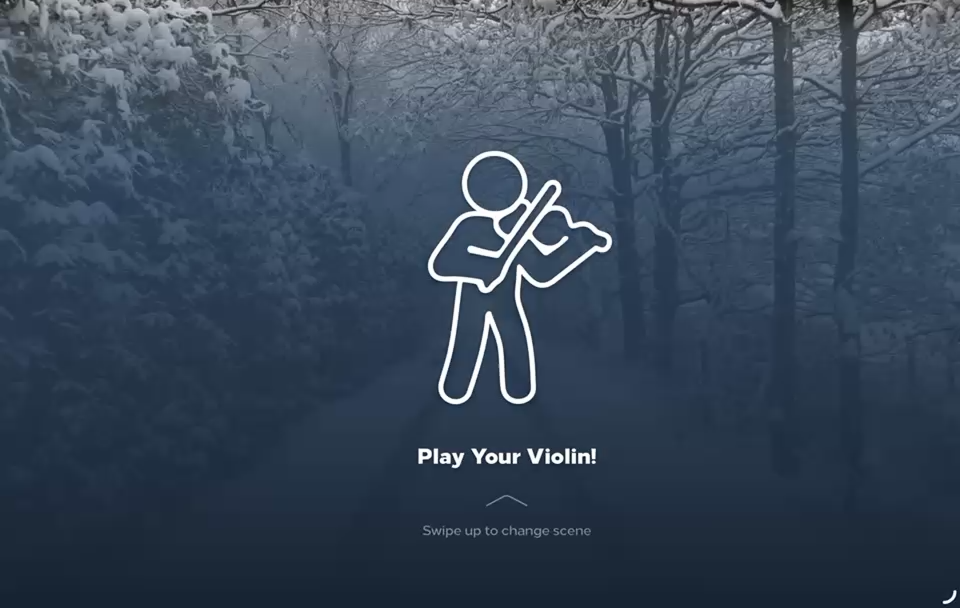

User Interface Component

violin App,

<a href='https://tortola.phoenix.sheridanc.on.ca/MM&B_ViolinApp/' target='_blank'><p>Link to app, use on phone/ tablet or inspect element on desktop</p></a>
×
